X-Machine Technical Specifications |
Model |
XM-125 |

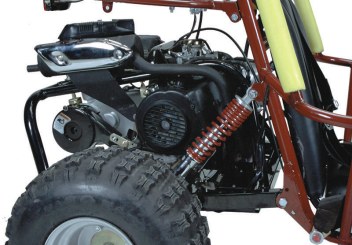

ENGINE |
Type: |
4-Stroke |
Displacement: |
124cc |
Cooling: |
Forced Air Cooled |
Starter: |
Electric
/ with Kick Start Backup |
Lubrication: |
Wet Sump Forced Feed |
Carburetor: |
Corundum
PD245 |
DRIVE TRAIN |
Transmission: |
CVT - Automatic V-Belt |
Chain: |
#530 |

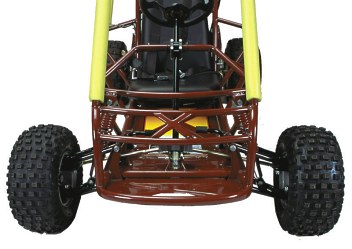

SUSPENSION |
Front Type: |
Dual A-arm |
Front
Travel: |
5
inches |
Rear Type: |
Dual Oil Shocks |
Rear
Travel: |
5
inches |
BRAKES |
Rear Brake: |
Hydraulic Disc |
Rear
Control: |
Foot
Operated |
DIMENSIONS / CAPACITIES |
Overall Max Height |
61 inches (1550 mm) |
Max. Length |
81 inches (2058 mm) |
Max. Width (tires) |
44 inches (1118 mm) |
Wheel Base: |
56 inches (1423 mm) |
Dry Vehicle Weight |
340 lbs. (153 kg) |
Tires Front: |
16 x 8 - 7 |
Tires Rear: |
18 x 9.50 -8 |
ELECTRICAL |
Battery: |
12 V. Sealed |
Lighting: |
Standard
Equipment |
GROUND CLEARANCE |
Front & Under Engine: |
8" Front Axle |
Rear
Axle: |
8"
Rear Axle / 5" Brake Disc. |
SHIPPING PACKAGING |
Packaging Type |
Re-enforced Crate |
Crate
Length |
87
inches (2210 mm) |
Crate Width |
38 inches (965 mm) |
Crate
Height |
32.5
inches (826 mm) |
Shipping Weight |
407 lbs. (185 kg) |
Pounds
Per Cubic Foot |
6.54 |
|
