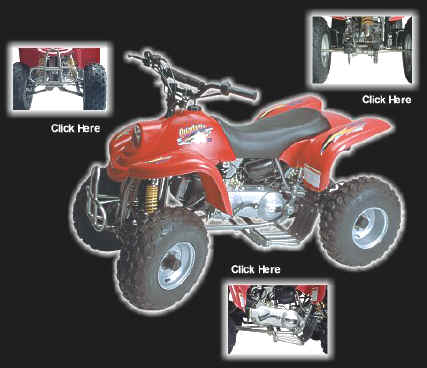

Carter Quadzilla ATV 65cc & 125cc
 |
The Quadzilla comes in 65cc and 125cc
|
| The
Quadzilla line of ATV's has features that a lot of other ATV's

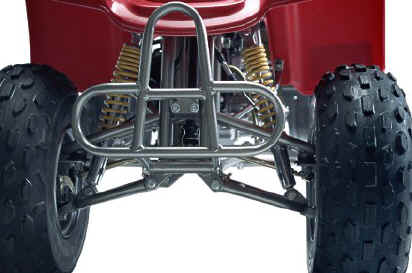

only dream about. The front suspension alone is equipped with dual A-arm
action, adjustable shocks, needle bearings, and grease fittings for a

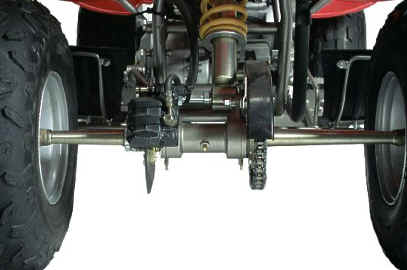

superior ride. In the rear, the Quazilla's have Gas / Oil mono shocks,
swing arms with needle bearings, and a hydraulic rear disc brake actuated

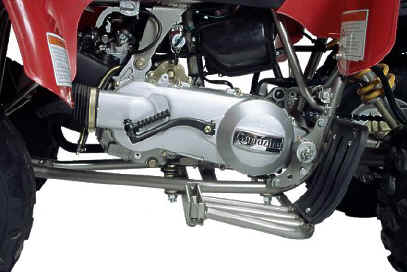

by a foot brake. The motors are reliable 4 - stroke with electric start
and fully automatic transmissions. Safety features such as parking brakes,
throttle limiters, and starter cut-out switch on the brake lever are
abundant on the Quadzilla line. Above all, you'll receive the service and
support from Carter Off-Road Machines.
And K&T Power Equipment
|
|
Quadzilla ATV Technical Specifications
|
|
|
|
Model
|
CB-65
|
CB-125
|
|
ENGINE
|
|
|
|
Displacement:
|
63cc |
124cc |
|
Type
|
Four
Stroke |
|
Cooling:
|
Forced
Air Cooled |
|
Starter:
|
Electric
/ with Kick Start Backup |
|
Lubrication:
|
Wet
Sump, Forced Feed Lubrication |
|
Carburetor:
|
CVK
/ GY50 |
Corundum
/ PD245 |
|
DRIVE TRAIN
|
|
|
|
Transmission:
|
CVT
- Automatic V-Belt |
|
|
Chain:
|
#428 |
#530 |
|
SUSPENSION
|
|
|
|
Front Type:
|
Dual
A-arm |
|
Front Travel:
|
5
inches |
|
Rear Type:
|
Gas
/ Oil Mono Shock |
|
BRAKES
|
|
|
|
Front Brakes:
|
Dual
Drums |
|
Front Controls:
|
Hand
Operated |
|
Rear Brake:
|
Hydraulic
Disc |
|
Rear Control:
|
Foot
Operated |
|
Parking:
|
Right
hand brake lever lock on front wheels |
|
DIMENSIONS / CAPACITIES
|
|
|
|
Overall Max Height
|
36 inches (920 mm)
|
41 inches (1045 mm)
|
|
Seat Height
|
24 inches (615 mm)
|
29.5 inches (750 mm)
|
|
Max. Length
|
58 inches (1470 mm)
|
62 inches (1575 mm)
|
|
Max. Width (tires)
|
33 inches (840 mm)
|
35 inches (890 mm)
|
|
Wheel Base:
|
42 inches (1058 mm)
|
42.5 inches (1080 mm)
|
|
Dry Vehicle Weight
|
240 lbs. (109 kg)
|
270 lbs. (125 kg)
|
|
Tires Front:
|
16 x 8-7
|
19 x 8-7
|
|
Tires Rear:
|
16 x 8-7
|
19 x 8-7
|
|
ELECTRICAL
|
|
|
|
Battery:
|
12 V. Sealed
|
|
Lighting:
|
Optional Accessory
|
Standard Equipment
|
|
GROUND CLEARANCE
|
|
|
|
Front Axle
|
6 inches (153 mm)
|
9.5 inches (242 mm)
|
|
Rear Axle:
|
7 inches (178 mm)
|
8.5 inches (216 mm)
|
|
SHIPPING PACKAGING
|
|
|
|
Packaging Type
|
Re-enforced Crate
|
|
Crate Length
|
56 inches (1425 mm)
|
|
Crate Width
|
33 inches (840 mm)
|
|
Crate Height
|
34 inches (865 mm)
|
|
Shipping Weight
|
306 lbs. (139 kg)
|
325 lbs. (148 kg)
|
|
Pounds Per Cubic Foot
|
8.42
|
8.94
|
|
 |
 |
|
