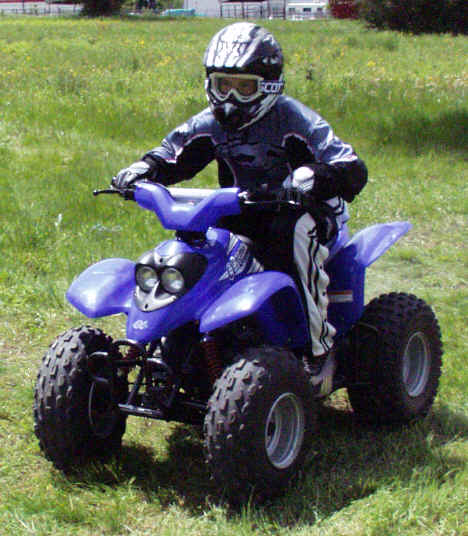

AlphaSports LG-90 (ages 12 & above)

The AlphaSports LG-90 ATV is a more powerful version of the popular LG-50. Approved for use by persons 12 years and older, it will appeal to the parent and youth rider. It's light and compact design will make it ideal for those needing to transport the unit via smaller trucks. The LG-90's 89.2cc motor provides extra torque, while the larger tires give better ground clearance.

The LG-90's standard features include an powerful oil injected reed valve engine, automatic transmission, electric start, front and rear suspension, full lighting system, and more.

Specification AlphaSports LG-90
ENGINE TYPE Two-Stroke Air-Cooled Reed Valve
DISPLACEMENT 89.2 cc
BORE x STROKE 52mm x 42mm
COMPRESSION RATIO 5.8:1
MAXIMUM TORQUE 8.82 N-m/6000 rpm
CARBURETOR Mikuni AM7 w/Automatic Choke
IGNITION CDI
STARTING Electric Starter w/Kicker Backup
LUBRICATION Automatic Oil Injection
LUBRICATION CAPACITY 1 Quart ATV Injection Oil
TRANSMISSION Automatic Continuous Variable (C.V.T.)
SUSPENSION, front Independent "A" Arm w/Individual Shocks
SUSPENSION, rear Swing Arm w/Adjustable Monoshock
BRAKES Front Dual Drum / Rear Sealed Drum
TIRES Front 19x7-8 / Rear 18x9.5-8
OVERALL DIMENSIONS 53.5 inches x 35 inches x 36.2 inches
WHEELBASE 35.25 inches
SEAT HEIGHT 24.4 inches
DRY WEIGHT 233 pounds
MAXIMUM LOAD 176 pounds
FUEL CAPACITY 1.32 Gallons Unleaded Gasoline
